Aircel AG3030201 IDI_545

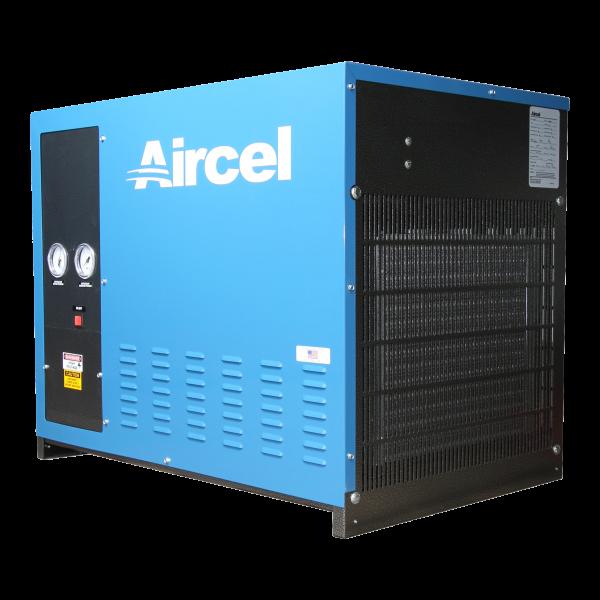

Aircel DHT-125 High Inlet Temperature Refrigerated Air Dryer

Aircel DHT Series AG3030201 High Inlet Temperature Refrigerated Air Dryer, 208/230 VAC, 1.35 kW, 1-1/4 hp, 125 scfm Air

Aircel DHT Series AG3030201 High Inlet Temperature Refrigerated Air Dryer, 208/230 VAC, 1.35 kW, 1-1/4 hp, 125 scfm Air AG3030201

The Aircel DHT Series is designed for use with smaller, reciprocating, air cooled compressors that typically do not incorporate an after cooler. The DHT maintains consistent pressure in varying flow conditions and operates completely automatically.
Aircel High Inlet Temperature Refrigerated Air Dryer, 208/230 VAC, 10.9 A, 60 Hz Frequency, 1 Phase, 1.35 kW Power, HP Rating: 1-1/4 hp, 1-1/2 in Inlet Connection, 1-1/2 in Outlet Connection, Inlet Air Temperature: 180 deg F, Air Flow Rate: 125 scfm, 175 psig Air Pressure, Dew Point Temperature: 50 deg F, 100 deg F Maximum Temperature, Refrigerant Type: R-134A, Timer Drain, 30 in Overall Height, 36 in Overall Width, 25 in Overall Depth

Air Flow Rate      :      125 scfm
Air Pressure      :      175 psig
Amperage Rating      :      10.9 A
Dew Point Temperature      :      50 deg F
Drain Type      :      Timer
Frequency Rating      :      60 Hz
HP Rating      :      1-1/4 hp
Inlet Air Temperature      :      180 deg F
Inlet Connection Size      :      1-1/2 in
Maximum Temperature      :      100 deg F
Outlet Connection Size      :      1-1/2 in
Overall Depth      :      25 in
Overall Height      :      30 in
Overall Width      :      36 in
Phase      :      1
Power Rating      :      1.35 kW
Refrigerant Type      :      R-134A
Voltage Rating      :      208/230 VAC
  • Aluminum block heat exchanger
  • Discharge gauge
  • Power on light
  • NEMA 1 standard
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Aircel_AG3030101_Catalog.pdf
  • pdfTechnical Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Aircel_AG3030201_Technical_Drawing.pdf
