Aircel AG3023201 IDI_522

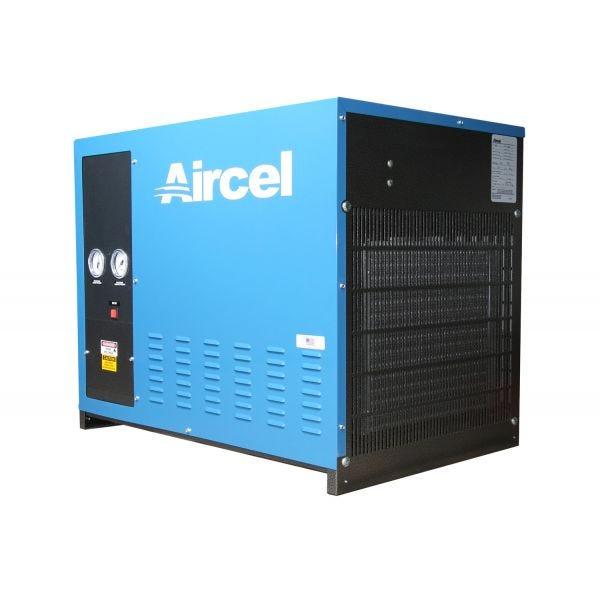

Aircel VF-250 Non-Cycling Refrigerated Air Dryer

Aircel VF Series AG3023201 Non-Cycling Refrigerated Air Dryer, 430 VAC, 1.35 kW, 1-1/4 hp, 1-1/2 in Inlet Connection

Aircel VF Series AG3023201 Non-Cycling Refrigerated Air Dryer, 430 VAC, 1.35 kW, 1-1/4 hp, 1-1/2 in Inlet Connection AG3023201

The Aircel VF Series offers high efficiency air drying at varying flow conditions in a lightweight, compact design. The VF utilizes a three step process to thoroughly remove condensed moisture from the chilled compressed air.
Aircel Non-Cycling Refrigerated Air Dryer, 430 VAC, 60 Hz Frequency, 3 Phase, 1.35 kW Power, HP Rating: 1-1/4 hp, 1-1/2 in Inlet Connection, 1-1/2 in Outlet Connection, Inlet Air Temperature: 100 deg F, Air Flow Rate: 250 scfm, 100 psig Air Pressure, Dew Point Temperature: 38 deg F, 100 deg F Maximum Temperature, Refrigerant Type: R-134A, Timer Drain, 30 in Overall Height, 36 in Overall Width, 25 in Overall Depth

Air Flow Rate      :      250 scfm
Air Pressure      :      100 psig
Dew Point Temperature      :      38 deg F
Drain Type      :      Timer
Frequency Rating      :      60 Hz
HP Rating      :      1-1/4 hp
Inlet Air Temperature      :      100 deg F
Inlet Connection Size      :      1-1/2 in
Maximum Temperature      :      100 deg F
Outlet Connection Size      :      1-1/2 in
Overall Depth      :      25 in
Overall Height      :      30 in
Overall Width      :      36 in
Phase      :      3
Power Rating      :      1.35 kW
Refrigerant Type      :      R-134A
Voltage Rating      :      430 VAC
  • Internal high efficiency separator
  • Discharge gauge
  • NEMA 1 standard
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Aircel_AG3030101_Catalog.pdf
  • pdfTechnical Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Aircel_AG3023201_Technical_Drawing.pdf
