Apollo® Valves 70-204-HC 70-204-HC

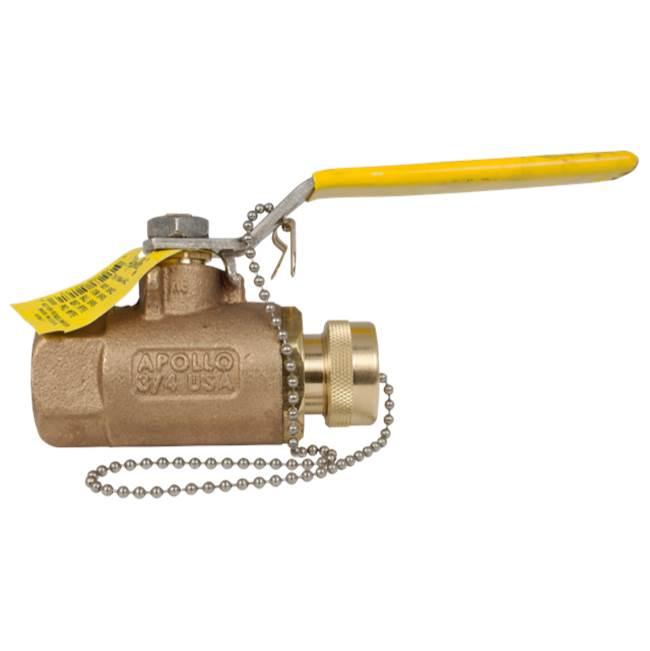

Apollo Valves 70-204-HC 2-Piece Ball Valve

Apollo® Valves 70-204-HC 2-Piece Ball Valve, 3/4 in Nominal, Solder Connection, 600 psig Pressure, 350 deg F

Apollo® Valves 70-204-HC 2-Piece Ball Valve, 3/4 in Nominal, Solder Connection, 600 psig Pressure, 350 deg F 70-204-HC

The Apollo® 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-200 model is a 2-piece standard port ball valve designed to be soft soldered into lines without disassembly. Cast and machined in Apollo's South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Apollo® Valves 2-Piece Ball Valve, Series: 70-200 Series, 3/4 in Nominal, Solder Connection, Standard Port, 600 psig, Gas, Water Media, Lever Actuator, 0.68 in Orifice, 3.87 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, 30 Cv Flow Coefficient (Cv), ASTM B584-C84400, ASTM B16 Material Standard, Bronze Body, RPTFE Seat, Brass Stem, PTFE Seal, MPTFE Packing, Steel Handle, Brass Ball, 350 deg F, Domestic/Import: Domestic

Actuator Type      :      Lever
Ball Material      :      Brass
Body Material      :      Bronze
Connection Type      :      Solder
Domestic/Import      :      Domestic
Flow Coefficient (Cv)      :      30 Cv
Handle Material      :      Steel
Inlet to Outlet Length      :      3.87 in
Material Standard      :      ASTM B584-C84400, ASTM B16
Media      :      Gas, Water
Nominal Size      :      3/4 in
Orifice Size      :      0.68 in
Packing Material      :      MPTFE
Port Type      :      Standard
Pressure Rating      :      600 psig
Seal Material      :      PTFE
Seat Material      :      RPTFE
Series      :      70-200 Series
Stem Material      :      Brass
Temperature Rating      :      350 deg F
Top to Inlet Center      :      2.12 in
  • Premium materials and heavy-duty construction
  • Adjustable stem packing gland
  • Blowout-proof stem design
  • 100% factory tested
  • Chromium-plated ball
  • 3/4 in hose cap and chain with stainless steel nut
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_70_200_01_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_70_200_01_Line_Drawing.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/APV-70-100_200HC_SS1185.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_70_200_01_Specification_Sheet.pdf
