ASCO 8320G-136 8320G-136

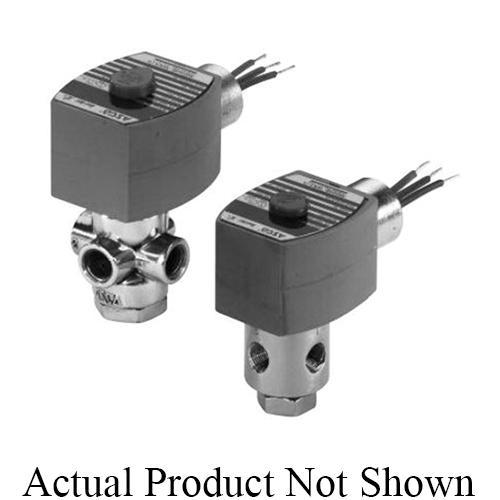

ASCO 8320G-136 Solenoid Valve

Asco 8320G-136 Solenoid Valve, 1/8 in Nominal, NPT Connection, 3-Port/Way, 200 psi Pressure, 180 deg F, 120 deg F

Asco 8320G-136 Solenoid Valve, 1/8 in Nominal, NPT Connection, 3-Port/Way, 200 psi Pressure, 180 deg F, 120 deg F 8320G-136

Asco Solenoid Valve, 1/8 in Nominal, Connection Type: NPT, Configuration: NO, 200 psi, Number of Ports/Ways: 3, Brass Body, 180 deg F, 120 deg F, 3.15 in H

Body Material      :      Brass
Configuration      :      NO
Connection Type      :      NPT
Dimensions      :      3.15 in H
Nominal Size      :      1/8 in
Number of Ports/Ways      :      3
Pressure Rating      :      200 psi
Temperature Rating      :      180 deg F, 120 deg F
  • All NPT connections are in the valve body to allows in-line piping
  • No minimum operating pressure differential required
  • Broadest range of applications
  • Mountable in any position
  • NBR or cast UR, as listed seals and disc
  • 305 stainless steel core tube
  • 430F stainless steel core and plunged
  • 302 stainless steel core springs
  • Copper shading coil
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8320G136_Specification_Sheet.pdf
