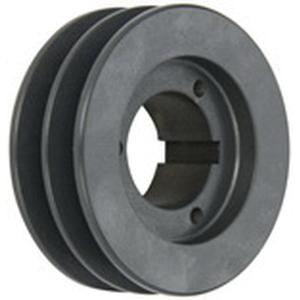

Browning 2TB 1002450 Sheave, Split Taper Bushed Bore, 5/8-1-3/8 in Dia Bore, 1-3/4 in W Face
Browning® 2TB Series 1002450 Sheave, Split Taper Bushed Bore, 5/8 to 1-3/8 in Dia Bore, 1-3/4 in W Face
Browning® 2TB Series 1002450 Sheave, Split Taper Bushed Bore, 5/8 to 1-3/8 in Dia Bore, 1-3/4 in W Face 1002450- Brand Name: Browning®
- Part Number: 1002450
- Check Stock
Add To Favorites ListBrowning® Sheave, Series: 2TB Series, Split Taper Bushed Bore, 5/8 to 1-3/8 in Bore Diameter, A, B Belt Section Size, Q1 Bushing Style, 2 Number of Grooves, 8.2 in Pitch Diameter, 2-1/2 in Length Through Bore, 1-3/4 in Face Width, Iron, 8.88 in OD x 2.828125 in L
| Belt Section Size | : | A, B |
| Bore Diameter | : | 5/8 to 1-3/8 in |
| Bore Type | : | Split Taper Bushed |
| Bushing Style | : | Q1 |
| Dimensions | : | 8.88 in OD x 2.828125 in L |
| Face Width | : | 1-3/4 in |
| Length Through Bore | : | 2-1/2 in |
| Material | : | Iron |
| Number of Grooves | : | 2 |
| Pitch Diameter | : | 8.2 in |
| Series | : | 2TB Series |
- Incorporates browning split taper bushing-the only bushing system that provides a true key-to-key drive to both the shaft and the hub
- Combination groove-all Browning B sheaves permit the running of A and B belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close grain cast iron-allows Browning to machine our sheaves to the closest tolerances possible
