Scheerer Bearing TAB-040082-201 TAB-040082-201

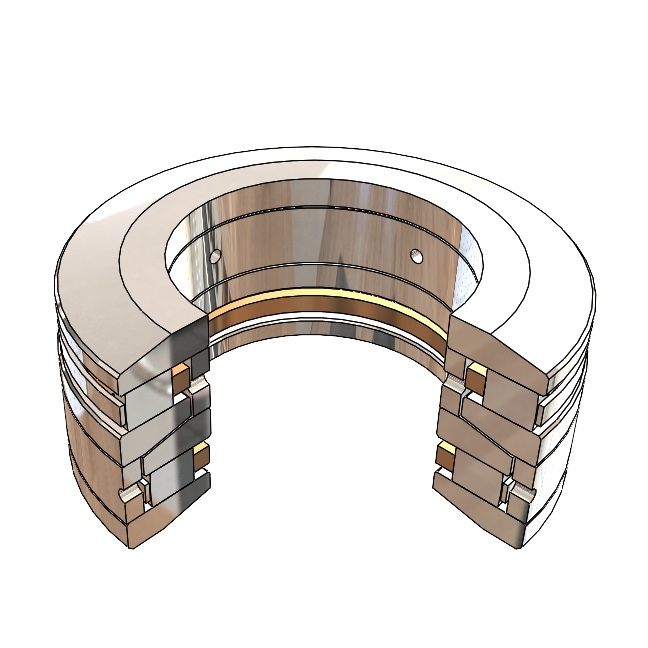

Scheerer Bearing TAB-040082-201 Cylindrical Roller Thrust Bearing (4.002 IN ID, 8.2515 IN OD, 4.75 IN W)

Scheerer Bearing TAB-040082-201 Two-Stage Tandem Cylindrical Roller Thrust Bearing, Banded Type Cage

Scheerer Bearing TAB-040082-201 Two-Stage Tandem Cylindrical Roller Thrust Bearing, Banded Type Cage TAB-040082-201

Cylindrical Roller Thrust Bearings are designed to handle high thrust loads (axial loads) in one or both directions. They are best used for applications that require low friction at high speeds. They have no Radial Load carrying capacity. Cylindrical Roller Thrust Bearing configurations include single and double acting with rigid and self-aligning variants. Banded designs are also available for crane hook applications, and come with (WCT) or without (CT) grease fittings. Common applications are extruders, service pumps, sludge/water separation presses, and injection molding equipment to name a few.

Additional Information      :      Two-Stage Tandem
Bearing Design      :      Roller Thrust - Cylindrical - Tandem
Cage Material      :      Bronze/Brass
Cage Type      :      Banded
Dynamic Load Capacity      :      Standard
Filling Slot      :      No
Inside Diameter      :      4.002 In
Internal Clearance      :      N/A
Number of Rows      :      2
Outside Diameter      :      8.2515 In
Precision Class      :      ABEC-1 (Standard)
Precision Ground      :      Yes
Race Material      :      Through Hardened Steel
Seal Type      :      None
Static Load Capacity      :      Standard
Width      :      4.75 In
  • pdfCatalog https://www.eindustrialsolutions.com//ASSETS/DOCUMENTS/ITEMS/EN/scheerer_bearing_catalog.pdf
