Toshiba 3008QDSC41A-R 3008QDSC41A-R

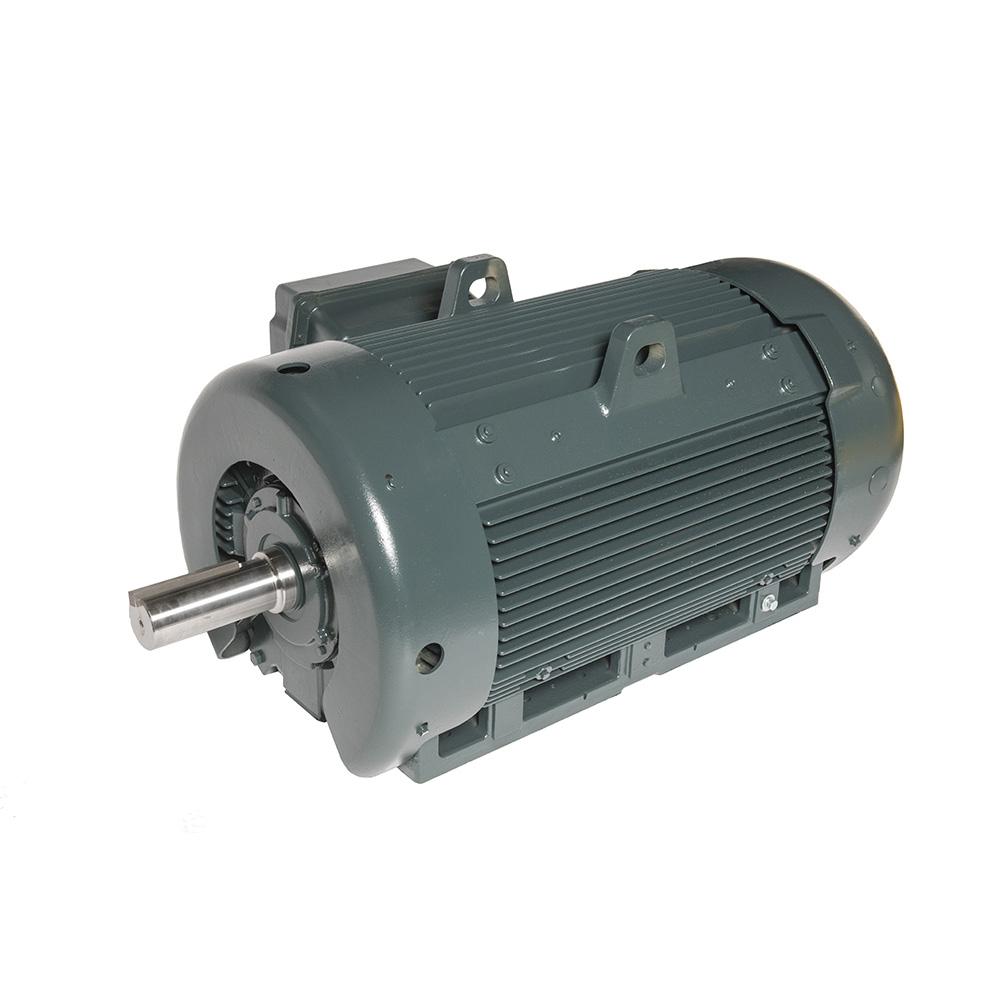

Toshiba 3008QDSC41A-R Quarry Duty Motor, 300 HP, 900 RPM, 575V, S587LQ Frame, TEFC

Toshiba EQP Global® 3008QDSC41A-R TEFC Quarry Duty Motor, 575V, 349 Amp, 300 HP, 900 RPM Speed, 223.7 kW, 3-Phase

Toshiba EQP Global® 3008QDSC41A-R TEFC Quarry Duty Motor, 575V, 349 Amp, 300 HP, 900 RPM Speed, 223.7 kW, 3-Phase 3008QDSC41A-R

Toshiba's Totally Enclosed Fan Cooled (TEFC), EQP Global® Quarry Duty motor series meets the demanding requirements of the cement, mining, and aggregate applications. It delivers exceptionally high torque during startup and increased load demand periods in dirty, dusty, and humid environments. The IP55 rating protects the enclosure against the entry of moisture and contaminants. Dependability is enhanced by a 1.25 service factor for motors 360 frame and below, while the heavy-duty cast-iron frame and brackets enhance durability. Manufactured with a commitment to quality, the EQP Global Quarry Duty series delivers exceptional performance and reliability in the most severe applications.

Toshiba TEFC Quarry Duty Motor, Model: EQP Global®, 575V, 349 Amp, 300 HP, 900 rpm, 223.7 kW, 3-Phase, 60Hz, TEFC Motor Enclosure, S587LQ Frame, 4.375 in Dia x 11.56 in L Shaft, CCW/CW Rotation, 1 Speed, 8 Poles, Quarry, Insulation Class: Class F, High and NEMA Premium® Efficiency Motor Efficiency Group, 95 % Efficiency, 1.15 Service Factor, 67.7 % Power Factor, Footed Mounting, Cast Iron, 40 deg C, 63.4 in L x 39.2 in H, Additional Information: 10 in L x 1 in W Keyway

Additional Information      :      10 in L x 1 in W Keyway
Amperage Rating      :      349 A
Dimensions      :      63.4 in L x 39.2 in H
Duty Type      :      Quarry
Efficiency      :      95 %
Frame Size      :      S587LQ
Frequency Rating      :      60 Hz
HP Rating      :      300 hp
Insulation Class      :      Class F
Material      :      Cast Iron
Model      :      EQP Global®
Motor Efficiency Group      :      High and NEMA Premium® Efficiency
Motor Enclosure Type      :      TEFC
Mounting Type      :      Footed
Number of Poles      :      8
Number of Speeds      :      1
Phase      :      3 ph
Power Factor      :      67.7 %
Power Rating      :      223.7 kW
Rotation Type      :      CCW/CW
Service Factor      :      1.15
Shaft Size      :      4.375 in Dia x 11.56 in L
Speed Rating      :      900 rpm
Temperature Rating      :      40 deg C
Voltage Rating      :      575 V
  • Totally Enclosed Fan Cooled
  • Severe Duty
  • High and NEMA Premium® Efficiency
  • High Torque Design
  • 60 Hz: 460 or 575 V
  • Three-Phase
  • 60 Hz Design
  • 1.25 Service Factor (Frames 184T-365T)
  • 1.15 Service Factor (Frames 405T - B587)
  • Class F Inverter Duty, Exceeds NEMA MG1 Part 31
  • IP55 Protection
  • Cast Iron Frame, Bearing Brackets and Conduit Box
  • Multi-Mount Capabilities on Most Frames (See Appendix C)
  • Polyurea Base Grease
  • Open Regreasable Roller Bearings on Frames S444T and Larger
  • Shaft Slinger or V-Ring Shaft on Drive End
  • 4142 High Strength Shaft Steel on Frames S444T and Larger
  • Hardware Grade 5 Frames 184T-S447T, Grade 8 on S/B449, 505UZ and S/B587
  • Bearing Lock Nuts for Vertical Mounting on Frames 505 and Larger
  • Load Side Locked Bearing on Frames 213T and Larger with Additional Bearing Lock Nuts on Frames S444T and Larger
